1, The  Diffusion  Board :

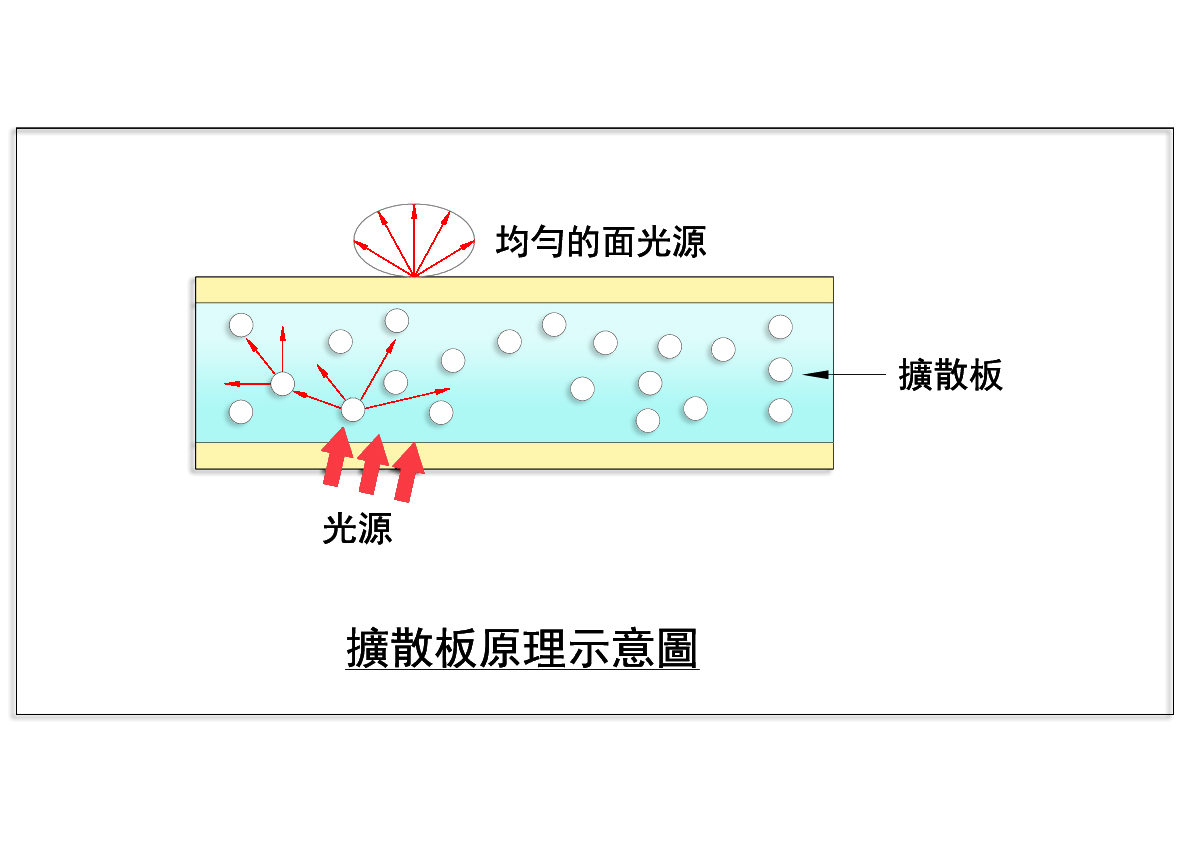

Diffuser plate principle for use of nanoscale beads light diffusion agent and optical acrylic (PMMA)/polystyrene (PS) b ene base material such as refractive index is different, when light passes through the different refractive index of medium, can produce many transmission of refraction and reflection, scattering phenomenon, so as to change the path of light, the light source becomes evenly dispersed, point light source into a surface light source, enlarged the shiny surface, and make the light becomes downy, achieve the goal of well and pervious to light. At the same time, it can meet the requirements of various fog values and transmittance, and in the case of high transmittance and low light failure, it has a good shading effect.

2, Product  Description :

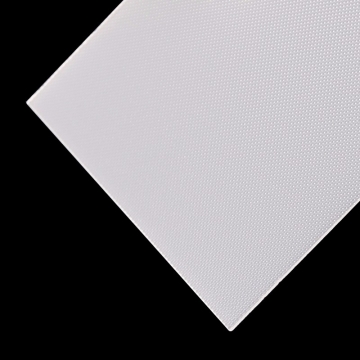

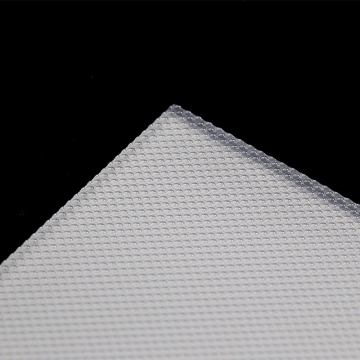

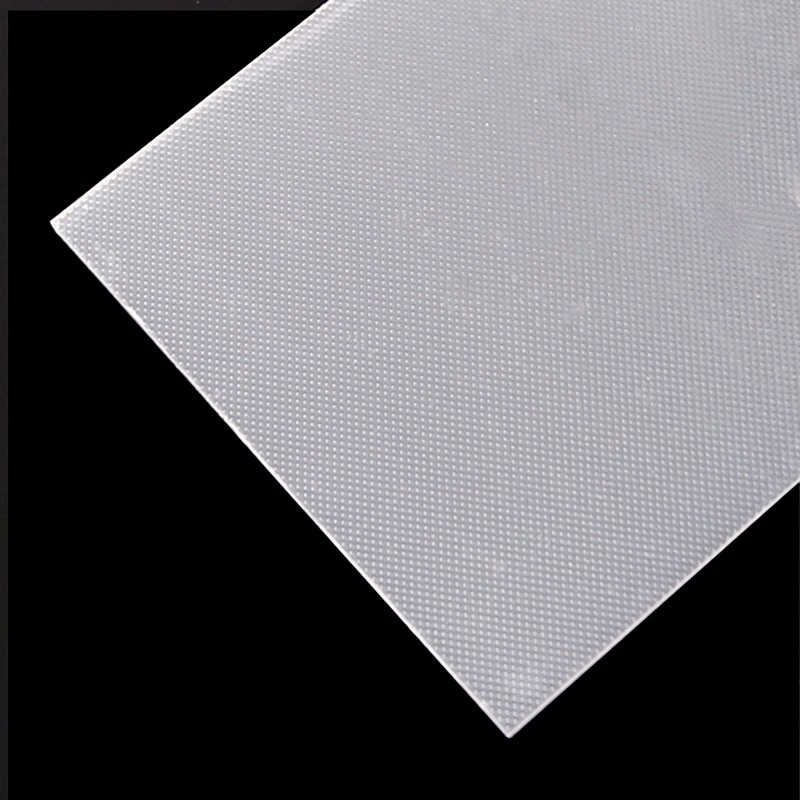

(1). With polystyrene as the base, a variety of dispersible agents are added, and extruded sheet material is extruded by extruder.

(2). Product  features :

a. PS low expansion coefficient, low water rate, dimensional stability and mechanical strength, good performance, and has high light transmittance, excellent shelter and durability, the optimal light diffusion effect.

b. It can improve the diffusion effect of light by increasing the diffusion effect of the luminescence distribution of the back light source.

c. Light transmittance: the excellent light transmittance produces its high brightness.

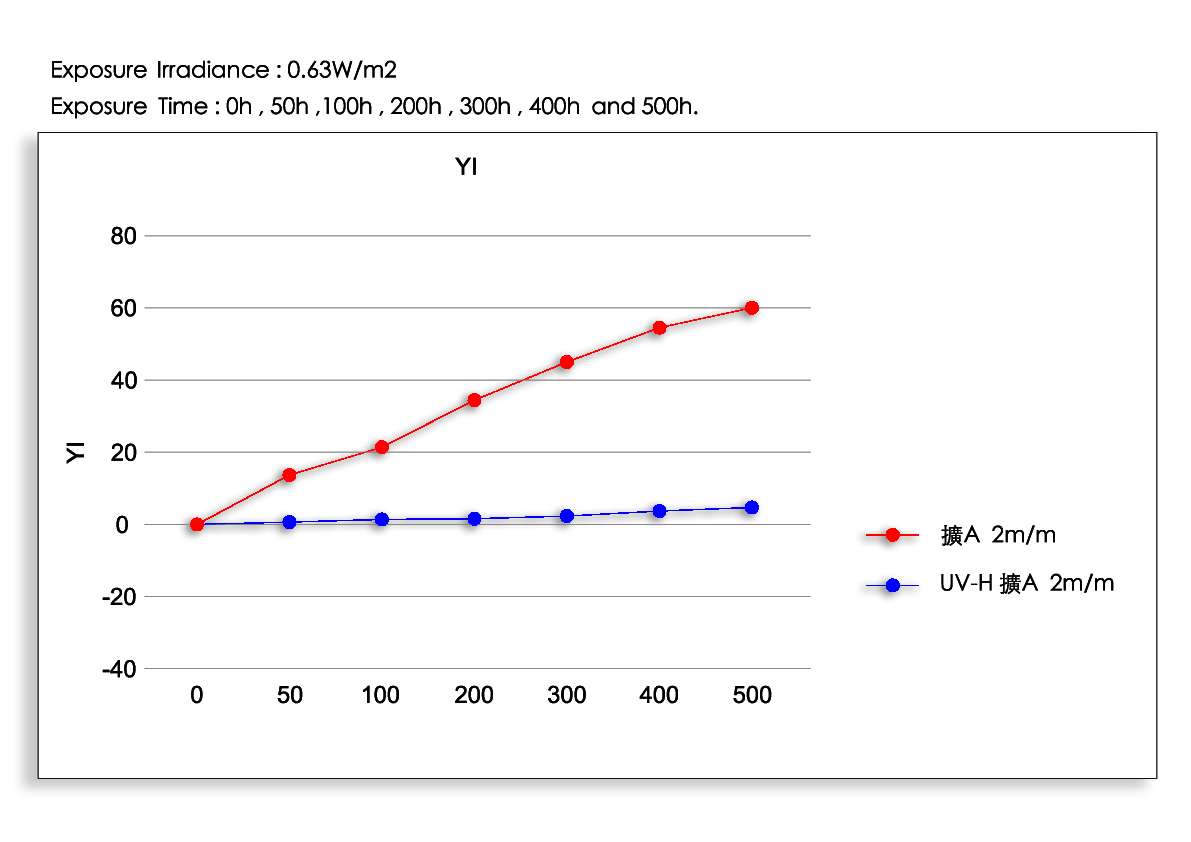

(3).  A UV stabilizer can be added to prolong the yellowing time.

3, Suggested Application :

Suitable for modern energy-saving lighting lamps and lanterns of LED technology such as LED panel light.

4, The Product Series :

5, Custom Specifications :

Remark:

1. Panels can be cut in specific sizes and shapes if provide with drawings in advance.

2. Panels are using imported diffuse agents to produce, and all flat side with PE protection films.

6, Certification :
